15-1000mAh
Small Capacity Cells 3.7V, 15-1,000mAh
Product features
HJL small capacit Li-po cells are used to power those small capacity application device needed.
Cells can be assembled in series to increase voltage and parallel to increase capacity by using several identical secondary HJL cells,Thermistors,thermal fuses,Connector and gas gauging can be added if needed.
How to choose model size:
· 1: Width (W) and length (L) are fixed for each certain size,while thickness (T) is changeable,according to device capacity requirement.
· 2: If there is no avaliable certian size which can meet with your device space limits,we can specially tooling the size for you.
· 3: bcs of adding PCM on the cell,the final length of the battery will go up about 1.5-2mm,while the thickness and width will go up about 0.5mm.
Technical parameter
| Model | Norminal Capacity | Norminal Voltage | Cell Demensions(mm) | Internal Resistance(omh) |
Approximate weight(g) |
||
|---|---|---|---|---|---|---|---|
| mAh | v | Thickness | Width | Length | |||
| HJL300815 | 15 | 3.7 | 3.0 | 8 | 15 | 600 | 0.8 |
| HJL271323 | 38 | 3.7 | 2.7 | 13 | 23 | 550 | 1 |
| HJL351121 | 40 | 3.7 | 3.5 | 11 | 21 | 500 | 1.2 |
| HJL381120 | 41 | 3.7 | 3.8 | 11 | 20.5 | 500 | 1.2 |
| HJL501020 | 45 | 3.7 | 5.0 | 10 | 20 | 380 | 1.1 |
| HJL301025 | 50 | 3.7 | 3.0 | 10.5 | 25.5 | 400 | 1.8 |
| HJL531017 | 50 | 3.7 | 5.3 | 10 | 17 | 400 | 1.5 |
| HJL451020 | 50 | 3.7 | 4.5 | 10 | 20 | 400 | 1.6 |
| HJL401120 | 50 | 3.7 | 4.0 | 11 | 20 | 400 | 1.7 |
| HJL401121 | 50 | 3.7 | 4.0 | 11 | 21 | 400 | 1.7 |
| HJL501121 | 60 | 3.7 | 5.0 | 11 | 21 | 350 | 1.8 |
| HJL421220 | 65 | 3.7 | 4.2 | 12 | 20 | 350 | 1.9 |
| HJL451220 | 65 | 3.7 | 4.5 | 12.5 | 20.5 | 350 | 1.9 |
| HJL301230 | 70 | 3.7 | 3.0 | 12 | 30 | 250 | 2.1 |
| HJL361320 | 72 | 3.7 | 3.6 | 13.5 | 20.5 | 350 | 1.9 |
| HJL351525 | 80 | 3.7 | 3.5 | 15.5 | 25.5 | 250 | 3.5 |
| HJL401620 | 80 | 3.7 | 4.0 | 16.5 | 20.5 | 250 | 3.1 |
| HJL350846 | 80 | 3.5 | 3.5 | 8 | 46 | 250 | 2.1 |
| HJL401225 | 80 | 3.7 | 4.0 | 12 | 25 | 250 | 2.1 |
| HJL451320 | 80 | 3.7 | 4.5 | 13.5 | 20.5 | 250 | 2.2 |
| HJL401226 | 80 | 3.7 | 4.0 | 12 | 26 | 250 | 2.2 |
| HJL451620 | 85 | 3.7 | 4.5 | 16.5 | 30.5 | 250 | 2 |
| HJL451225 | 90 | 3.7 | 4.5 | 12.5 | 25.5 | 250 | 2.3 |
| HJL322121 | 95 | 3.7 | 3.2 | 21.5 | 21.5 | 250 | 2.5 |
| HJL521225 | 100 | 3.7 | 5.2 | 12 | 25 | 250 | 2.5 |
| HJL551420 | 100 | 3.7 | 5.5 | 14.5 | 20.5 | 250 | 2.6 |
| HJL401230 | 102 | 3.7 | 4.0 | 12 | 30.5 | 250 | 2.6 |
| HJL401430 | 110 | 3.7 | 4.0 | 14.5 | 30.5 | 300 | 2.8 |
| HJL481133 | 120 | 3.7 | 4.8 | 11.5 | 33.5 | 220 | 3 |
| HJL401235 | 120 | 3.7 | 4.0 | 12 | 35.5 | 220 | 3 |
| HJL401039 | 132 | 3.7 | 4.0 | 10.5 | 39.5 | 200 | 2.9 |
| HJL501230 | 140 | 3.7 | 5.0 | 12.5 | 30.5 | 200 | 3.4 |
| HJL402025 | 150 | 3.7 | 4.0 | 20.5 | 25.5 | 150 | 3.2 |
| HJL1519118 | 180 | 3.7 | 1.5 | 19.5 | 118.5 | 190 | 4.1 |
| HJL402030 | 180 | 3.7 | 4.0 | 20.5 | 30.5 | 200 | 3.8 |
| HJL402033 | 190 | 3.7 | 4.0 | 20.5 | 33.5 | 150 | 3.9 |
| HJL501730 | 200 | 3.7 | 5.0 | 17.5 | 30.5 | 200 | 4.5 |
| HJL352730 | 200 | 3.5 | 3.5 | 27 | 30.5 | 200 | 4.6 |
| HJL451834 | 210 | 3.7 | 4.5 | 18.5 | 34.5 | 150 | 4.5 |
| HJL016080 | 220 | 3.7 | 1.0 | 60.5 | 80.5 | 130 | 4.9 |
| HJL581730 | 240 | 3.7 | 5.8 | 17.5 | 30.5 | 125 | 5.1 |

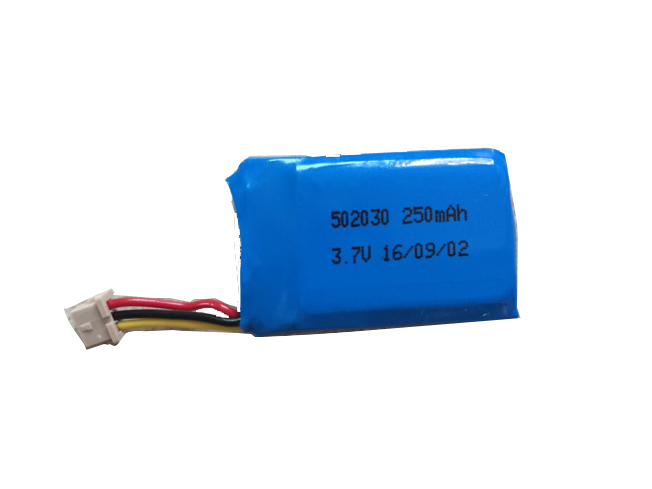

| HJL502030 | 250 | 3.7 | 5.0 | 20.5 | 30.5 | 200 | 5.1 |
| HJL422435 | 280 | 3.7 | 4.2 | 24.5 | 35.5 | 120 | 5.8 |
| HJL452730 | 280 | 3.7 | 4.5 | 27.5 | 30.5 | 120 | 5.8 |
| HJL451941 | 300 | 3.7 | 4.5 | 19 | 41.5 | 150 | 6.2 |
| HJL323435 | 320 | 3.7 | 3.2 | 34.5 | 35.5 | 150 | 6.4 |
| HJL392338 | 320 | 3.7 | 3.9 | 23.5 | 38.5 | 150 | 6.4 |
| HJL503029 | 350 | 3.7 | 5.0 | 30.5 | 29.5 | 150 | 6.8 |
| HJL502730 | 350 | 3.7 | 5.0 | 27.5 | 30.5 | 150 | 6.8 |
| HJL502535 | 360 | 3.7 | 5.0 | 25.5 | 35.5 | 150 | 7.3 |
| HJL353040 | 370 | 3.7 | 3.5 | 30.5 | 40.5 | 100 | 7.5 |
| HJL402546 | 390 | 3.7 | 4.0 | 25.5 | 46.5 | 100 | 7.8 |
| HJL582728 | 400 | 3.7 | 5.8 | 27.5 | 28.5 | 70 | 9.1 |
| HJL352745 | 400 | 3.7 | 3.5 | 27.5 | 45.5 | 70 | 8.5 |
| HJL303048 | 400 | 3.7 | 3.0 | 30.5 | 48.5 | 70 | 8.5 |
| HJL403040 | 430 | 3.7 | 4.0 | 30.5 | 40.5 | 80 | 8.6 |
| HJL503030 | 430 | 3.7 | 5.0 | 30.5 | 30.5 | 80 | 8.6 |
| HJL602535 | 450 | 3.7 | 6.0 | 25.5 | 35.5 | 100 | 8.7 |
| HJL503034 | 450 | 3.7 | 5.0 | 30.5 | 34.5 | 100 | 9.2 |
| HJL603030 | 470 | 3.7 | 6.0 | 30.5 | 30.5 | 60 | 10.1 |
| HJL155776 | 480 | 3.7V | 1.5 | 57.5 | 76.5 | 55 | 18.8 |
| HJL303450 | 490 | 3.7 | 3.0 | 34.5 | 50.5 | 80 | 9.5 |
| HJL502248 | 500 | 3.7 | 5.0 | 22.5 | 48.5 | 120 | 9.6 |
| HJL483637 | 500 | 3.7 | 4.8 | 36.5 | 37.5 | 110 | 9.7 |
| HJL423043 | 500 | 3.7 | 4.2 | 30.5 | 43.5 | 120 | 9.8 |
| HJL274346 | 510 | 3.7 | 2.7 | 43.5 | 46.5 | 80 | 9.9 |
| HJL632140 | 520 | 3.7 | 6.3 | 21.5 | 40.5 | 80 | 10.2 |
| HJL354640 | 580 | 3.7 | 3.5 | 46.5 | 40.5 | 100 | 11.6 |
| HJL503043 | 600 | 3.7 | 5.0 | 30.5 | 43.5 | 100 | 12.1 |
| HJL403048 | 600 | 3.7 | 4.0 | 30.5 | 48.5 | 100 | 12.2 |
| HJL303759 | 600 | 3.7 | 3.0 | 37.5 | 59.5 | 100 | 12.2 |
| HJL483438 | 600 | 3.7 | 4.8 | 34.5 | 38.5 | 100 | 12.1 |
| HJL502845 | 600 | 3.7 | 5.0 | 28.5 | 45.5 | 100 | 12.3 |
| HJL452853 | 640 | 3.7 | 4.5 | 28.5 | 53.5 | 100 | 12.4 |
| HJL383450 | 650 | 3.7 | 3.8 | 34.5 | 50.5 | 80 | 13.2 |
| HJL603040 | 650 | 3.7 | 6.0 | 30.5 | 40.5 | 80 | 13.3 |
| HJL553040 | 650 | 3.7 | 5.5 | 30.5 | 40.5 | 80 | 13.3 |
| HJL652447 | 700 | 3.7 | 6.5 | 24.5 | 47.5 | 80 | 15.1 |
| HJL553345 | 700 | 3.7 | 5.5 | 33.5 | 45.5 | 80 | 14.1 |
| HJL503048 | 700 | 3.7 | 5.0 | 30.5 | 48.5 | 80 | 14.1 |
| HJL603245 | 710 | 3.7 | 6.0 | 32.5 | 45.5 | 60 | 13.9 |
| HJL553440 | 730 | 3.7 | 5.5 | 34.5 | 40.5 | 80 | 15.2 |
| HJL603440 | 730 | 3.7 | 6.0 | 34.5 | 40.5 | 80 | 15.1 |
| HJL653040 | 750 | 3.7 | 6.5 | 30.5 | 40.5 | 70 | 15.2 |
| HJL423450 | 750 | 3.7 | 4.2 | 34.5 | 50.5 | 70 | 15.2 |
| HJL653438 | 800 | 3.7 | 6.5 | 34.5 | 38.5 | 60 | 15.8 |
| HJL653439 | 800 | 3.7 | 6.5 | 34.5 | 39.5 | 60 | 15.7 |
| HJL453450 | 800 | 3.7 | 4.5 | 34.5 | 50.5 | 60 | 15.8 |
| HJL573639 | 800 | 3.7 | 5.7 | 36.5 | 39.5 | 60 | 15.8 |
| HJL722842 | 800 | 3.7 | 7.2 | 28.5 | 42.5 | 60 | 15.7 |
| HJL703048 | 800 | 3.7 | 7.0 | 30.5 | 48.5 | 38 | 18.3 |
| HJL523448 | 800 | 3.7 | 5.2 | 34.5 | 48.5 | 60 | 15.7 |
| HJL483450 | 850 | 3.7 | 4.8 | 34.5 | 50.5 | 80 | 15.9 |
| HJL503450 | 850 | 3.7 | 5.0 | 34.5 | 50.5 | 80 | 15.5 |
| HJL553444 | 850 | 3.7 | 5.5 | 34.5 | 44.5 | 80 | 15.5 |
| HJL603048 | 850 | 3.7 | 6.0 | 30.5 | 48.5 | 80 | 15.9 |
| HJL803040*2 | 900 | 7.4 | 8.0 | 30.5 | 40.5 | 55 | 36.7 |
| HJL603843 | 900 | 3.7 | 6.0 | 38.5 | 43.5 | 60 | 18 |
| HJL652754 | 900 | 3.7 | 6.5 | 27.5 | 54.5 | 60 | 18.1 |
| HJL523450 | 900 | 3.7 | 5.2 | 34.5 | 50.5 | 60 | 18.2 |
| HJL573345 | 920 | 3.7 | 5.7 | 33.5 | 45.5 | 75 | 19.1 |
| HJL414551 | 950 | 3.7 | 4.1 | 45.5 | 51.5 | 40 | 19.3 |
| HJL653048 | 950 | 3.7 | 6.5 | 30.5 | 48.5 | 40 | 19.5 |
| HJL603448 | 950 | 3.7 | 6.0 | 34.5 | 48.5 | 40 | 19.6 |
| HJL583450 | 980 | 3.7 | 5.8 | 34.5 | 50.5 | 70 | 19.8 |
