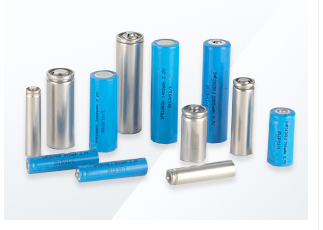

Energy Cell

The lithium iron phosphate (LiFePO4) battery, also called LFP (lithium ferro-phosphate) battery, is a type of rechargeable battery which uses LiFePO4 as a cathode material, specifically a lithium-ion battery is finding its market in electronics and consumer such as flashlight, lighting,ect,. LFP cell has 3.2V nominal working voltage and shall be cut-off power at 3.65V per cell during charging. LFP battery has the lowest cost if considering its long cycle life.

Product features

LiFePO4 Energy Cell, 3C Max. Discharging Rate

The lithium iron phosphate (LiFePO4) battery, also called LFP (lithium ferro-phosphate) battery, is a type of rechargeable battery which uses LiFePO4 as a cathode material, specifically a lithium-ion battery is finding its market in electronics and consumer such as flashlight, lighting, portable power bank, ect,. LFP cell has 3.2V nominal working voltage and shall be cut-off power at 3.65V per cell during charging. LFP battery has the lowest cost if considering its long cycle life.

1: Energy density 140Wh/Kg weight ratio, and 340Wh/L volume ratio.
2: Up to 2000 cycles 80% DOD.
3: -10℃–+70℃ operating temperature range.
4: Safe/stable chemistry with no explosion & fire.
5: 1/3 weight of lead acid and 64% of Ni-MH.
6: Environmentally friendly.

Model No	Norminal Voltage (3.2V)	Norminal Capacity (mAh)	Cell Size (mm)		Standard Charging Current （mA）	Fast Charging Current （mA）	Standard Discharging Current （mA）	Max Discharging Current （mA）	End-of-charge voltage （V）	End-of-discharge voltage （V）	Weight （g）	Cycle life DOD 80%
Model No	Norminal Voltage (3.2V)	Norminal Capacity (mAh)	Diameter	Hight	Standard Charging Current （mA）	Fast Charging Current （mA）	Standard Discharging Current （mA）	Max Discharging Current （mA）	End-of-charge voltage （V）	End-of-discharge voltage （V）	Weight （g）	Cycle life DOD 80%
IFR10130	3.2	30	10.3	13.2	6	30	6	90	3.65	2	5	≥2000
IFR10440	3.2	200	10.3	44.2	40	200	40	600	3.65	2	7	≥2000
IFR14400J	3.2	380	14.4	40.2	76	380	76	1140	3.65	2	13	≥2000
IFR14430J	3.2	250	14.2	43.3	50	250	50	750	3.65	2	11	≥2000
IFR14430J	3.2	300	14.2	43.3	60	300	60	900	3.65	2	12	≥2000
IFR14430J	3.2	400	14.2	43.3	80	400	80	1200	3.65	2	13	≥2000
IFR14500J	3.2	250	14.4	50.9	50	250	50	750	3.65	2	14	≥2000
IFR14500J	3.2	300	14.4	50.9	60	300	60	900	3.65	2	15	≥2000
IFR14500J	3.2	400	14.4	50.9	80	400	80	1200	3.65	2	15.5	≥2000
IFR14500	3.2	500	14.2	50.2	100	500	100	1500	3.65	2	16	≥2000
IFR14500J	3.2	500	14.4	50.9	100	500	100	1500	3.65	2	16.8	≥2000
IFR14500	3.2	550	14.2	50.2	110	550	110	1650	3.65	2	16.4	≥2000
IFR14500J	3.2	550	14.4	50.9	110	550	110	1650	3.65	2	17	≥2000
IFR14500	3.2	600	14.2	50.2	120	600	120	1800	3.65	2	18	≥2000
IFR14500J	3.2	600	14.4	50.9	120	600	120	1800	3.65	2	18.3	≥2000
IFR15266J	3.2	220	15.5	26.5	44	220	44	660	3.65	2	12	≥2000
IFR14650	3.2	800	14.2	65.3	160	800	160	2400	3.65	2	21	≥2000
IFR16340	3.2	400	16.2	34.2	80	400	80	1200	3.65	2	13.5	≥2000
IFR16340J	3.2	400	16.4	34.4	80	400	80	1200	3.65	2	15	≥2000
IFR17335J	3.2	400	16.8	34.5	80	400	80	1200	3.65	2	15.8	≥2000
IFR18470J	3.2	850	18.1	47.1	170	850	170	2550	3.65	2	19	≥2000
IFR18490	3.2	650	18.1	49.1	130	650	130	1950	3.65	2	21	≥2000
IFR18490	3.2	850	18.1	49.1	170	850	170	2550	3.65	2	24	≥2000
IFR18490	3.2	1000	18.1	49.1	200	1000	200	3000	3.65	2	27	≥2000
IFR18500J	3.2	650	18.1	50.2	130	650	130	1950	3.65	2	26	≥2000
IFR18500J	3.2	850	18.1	50.2	170	850	170	2550	3.65	2	29.6	≥2000
IFR18500	3.2	1000	18.1	50.2	200	1000	200	3000	3.65	2	34	≥2000
IFR18650	3.2	1400	18.5	65.3	280	1400	280	4200	3.65	2	42	≥2000
IFR18650	3.2	1500	18.5	65.3	300	1500	300	4500	3.65	2	42	≥2000
IFR22430	3.2	1200	22.5	43.3	240	1200	240	3600	3.65	2	47	≥2000
IFR22650	3.2	1800	22.5	65.3	360	1800	360	5400	3.65	2	60	≥2000
IFR22650	3.2	1900	22.5	65.3	380	1900	380	5700	3.65	2	62	≥2000
IFR22650	3.2	2000	22.5	65.3	400	2000	400	6000	3.65	2	63	≥2000
IFR26430	3.2	1600	26.5	43.3	320	1600	320	4800	3.65	2	50	≥2000
IFR26430	3.2	1800	26.5	43.3	360	1800	360	5400	3.65	2	54	≥2000
IFR26430	3.2	2000	26.5	43.3	400	2000	400	6000	3.65	2	56	≥2000
IFR26500	3.2	2100	26.5	50.3	420	2100	420	6300	3.65	2	56	≥2000
IFR26500	3.2	2200	26.5	50.3	440	2200	440	6600	3.65	2	58	≥2000
IFR26650	3.2	2900	26.5	65.3	580	2900	580	8700	3.65	2	83	≥2000
IFR26650	3.2	3000	26.5	65.3	600	3000	600	9000	3.65	2	85	≥2000
IFR26650	3.2	3100	26.5	65.3	620	3100	620	9300	3.65	2	86	≥2000
IFR26650	3.2	3200	26.5	65.3	640	3200	640	9600	3.65	2	88	≥2000
IFR26650	3.2	3400	26.5	65.3	680	3400	380	10200	3.65	2	90	≥2000
IFR32600	3.2	3500	32.5	60.5	700	3500	700	10500	3.65	2	125	≥2000
IFR32600	3.2	4000	32.5	60.5	800	4000	800	12000	3.65	2	129	≥2000
IFR32650	3.2	4500	32.3	65.2	900	4500	900	13500	3.65	2	138	≥2000
IFR32900	3.2	4500	32.5	90.5	900	4500	900	13500	3.65	2	170	≥2000
IFR32900	3.2	5000	32.5	90.5	1000	5000	1000	15000	3.65	2	180	≥2000
IFR32900	3.2	5500	32.5	90.5	1100	5500	1100	16500	3.65	2	192	≥2000
IFR42110	3.2	10000	42.5	110.5	2000	10000	2000	30000	3.65	2	350	≥2000
IFR42110	3.2	11000	42.5	110.5	2200	11000	2200	33000	3.65	2	360	≥2000
IFR42120	3.2	12500	42.5	120.5	2500	12500	2500	37500	3.65	2	380	≥2000
IFR42120	3.2	13000	42.5	120.5	2600	13000	2600	39000	3.65	2	390	≥2000
IFR61300	3.2	50000	61	300	10000	50000	10000	50000	3.65	2	2000	≥2000
IFR73435	3.2	100000	73	435	20000	50000	50000	100000	3.65	2	3800	≥2000
