5000-10000mAh
Large Capacity Cells 3.7V, 5,000-10,000mAh
Product features
Large Capacity Cells 3.7V, 5,000-10,000mAh
HJL large capacity (3.7V, 5,000-10,000mAh) Li-polymer cells are used to power those applications requiring more higher capacity levels. Cells can be combined and assembled in series to increase voltage and parallel to increase capacity by using several identical secondary HJL cells. Thermistors or thermal fuses and gas gauging can be added if required. Connection method can be tabs soldering directly.
Model Selection Guide
- Width (W) and length (L) are fixed for each cell size but thickness (T) is variable, which can increase or decrease cell capacity for the same fixed width and length Lipo cell.
- Due to space limitations, if you don't see the exact width and length you want here below in the list or not even a closer model to your size required, please contact us for more.
- Adding a PCM on the cell will increase approx. 1.5-2.0mm to the overall length, and 0.5mm to the thickness after assembly.
Technical parameter
| Model | Norminal Capacity | Norminal Voltage | Cell Demensions(mm) | Internal Resistance(omh) |
Approximate weight(g) |
||
|---|---|---|---|---|---|---|---|
| mAh | v | Thickness | Width | Length | |||
| HJL3056146 | 5000 | 3.7 | 3.0 | 56.5 | 146.5 | 30 | 100.2 |
| HJL5075123 | 5000 | 3.7 | 5.0 | 75.5 | 123.5 | 35 | 98 |
| HJL7345125 | 5000 | 3.7 | 7.3 | 45.5 | 125.5 | 30 | 98.5 |
| HJL687398 | 5000 | 3.7 | 6.8 | 73 | 98.5 | 50 | 100.3 |
| HJL7545135 | 5000 | 3.7 | 7.5 | 45.5 | 135.5 | 50 | 91.9 |
| HJL5863135 | 5000 | 3.7 | 5.8 | 63.5 | 135.5 | 30 | 97.4 |
| HJL6560110 | 5000 | 3.7 | 6.5 | 60 | 110 | 40 | 97.4 |
| HJL8549105 | 5000 | 3.7 | 8.5 | 49 | 105.5 | 63 | 100.3 |
| HJL107665 | 5000 | 3.7 | 10 | 76 | 65 | 50 | 96.2 |
| HJL708080 | 5000 | 3.7 | 7.0 | 80 | 80.5 | 50 | 94.2 |
| HJL7064102 | 5000 | 3.7 | 7.0 | 64.5 | 102.5 | 30 | 93.5 |
| HJL5564121 | 5000 | 3.7 | 5.5 | 64.5 | 121.5 | 50 | 95.6 |
| HJL6462114 | 5000 | 3.7 | 6.4 | 62 | 114 | 50 | 96.4 |
| HJL6870140 | 5000 | 3.7 | 6.8 | 70 | 140 | 45 | 97.8 |
| HJL4278145 | 5000 | 3.7 | 4.2 | 78 | 145 | 40 | 95.3 |
| HJL5070140 | 5000 | 3.7 | 5 | 70 | 140 | 50 | 96 |
| HJL7063135 | 5000 | 3.7 | 7.0 | 63.5 | 135 | 50 | 96 |
| HJL4080136 | 5100 | 3.7 | 4.0 | 80 | 136.5 | 40 | 99.3 |
| HJL3869183 | 5200 | 3.6 | 3.8 | 69.5 | 183.5 | 50 | 96.5 |
| HJL9050114 | 5300 | 3.6 | 9.0 | 50 | 114.5 | 50 | 96.1 |
| HJL106573 | 5300 | 3.6 | 10 | 65 | 73.5 | 45 | 93.4 |
| HJL4970150 | 5400 | 3.6 | 4.9 | 70 | 150 | 40 | 102.8 |
| HJL3278133 | 5500 | 3.7 | 3.2 | 78.5 | 133.5 | 33 | 110.9 |
| HJL35110130 | 5500 | 3.7 | 3.5 | 110.5 | 130.5 | 35 | 110.8 |
| HJL45103123 | 5500 | 3.6 | 4.5 | 103 | 123.5 | 40 | 110.4 |
| HJL5285114 | 5800 | 3.6 | 5.2 | 85 | 114.5 | 40 | 104.9 |
| HJL3997132 | 5900 | 3.7 | 3.9 | 97.5 | 132 | 40 | 112.3 |
| HJL165066 | 6000 | 22.2 | 6 | 50.5 | 66.6 | 40 | 365.7 |
| HJL6663135 | 6000 | 3.6 | 6.6 | 63.5 | 135.5 | 40 | 114.7 |
| HJL6041250 | 6000 | 3.6 | 6.0 | 41 | 250 | 18 | 122.3 |
| HJL8648126 | 6000 | 3.6 | 8.6 | 48 | 126 | 35 | 120.3 |
| HJL6575123 | 6400 | 3.7 | 6.5 | 75 | 123.5 | 50 | 128.4 |
| HJL8555126 | 6700 | 3.7 | 8.5 | 55 | 126.5 | 40 | 120.5 |
| HJL32120160 | 7000 | 3.7V | 3.2 | 120.5 | 160.5 | 15 | 142.6 |
| HJL7564113 | 7000 | 3.7 | 7.5 | 64.5 | 113.5 | 15 | 139.7 |

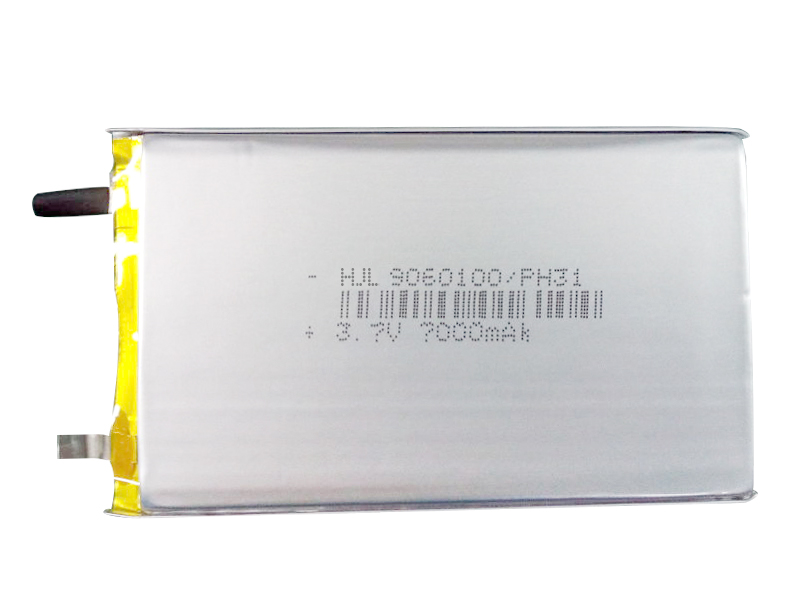

| HJL9060100 | 7000 | 3.7 | 9.0 | 60.5 | 100.5 | 15 | 142 |
| HJL5378180 | 7000 | 3.7 | 5.3 | 78 | 181 | 15 | 143 |
| HJL987398 | 7000 | 3.6 | 9.8 | 73 | 98 | 15 | 142.6 |
| HJL5869175 | 7800 | 3.6 | 5.8 | 69 | 175.5 | 26 | 151.9 |
| HJL6567220 | 8000 | 3.6 | 6.5 | 67 | 220.5 | 10 | 197.4 |
| HJL7175135 | 8000 | 3.6 | 7.1 | 75 | 135 | 26 | 155.8 |
| HJL7675135 | 8300 | 3.6 | 7.6 | 75 | 135 | 20 | 161.6 |
| HJL8559156 | 9000 | 3.7 | 8.5 | 59.5 | 156.5 | 30 | 176 |
| HJL6072196 | 9700 | 3.6 | 6 | 72 | 196.5 | 20 | 184.3 |
| HJL5070200 | 10000 | 3.7 | 5.0 | 70.5 | 200.5 | 6 | 241.2 |
| HJL7565113 | 10000 | 3.7 | 7.5 | 65.5 | 113.5 | 5 | 241.2 |
| HJL8565113 | 10000 | 3.7 | 8.5 | 65.5 | 113.5 | 6 | 240.1 |
| HJL8280200 | 10000 | 3.7 | 8 | 80 | 200 | 5 | 238.2 |
| HJL8580200 | 10000 | 3.7 | 8.3 | 80 | 200 | 16 | 240 |
| HJL7880200 | 10000 | 3.7 | 7.8 | 80 | 200 | 5 | 238 |
