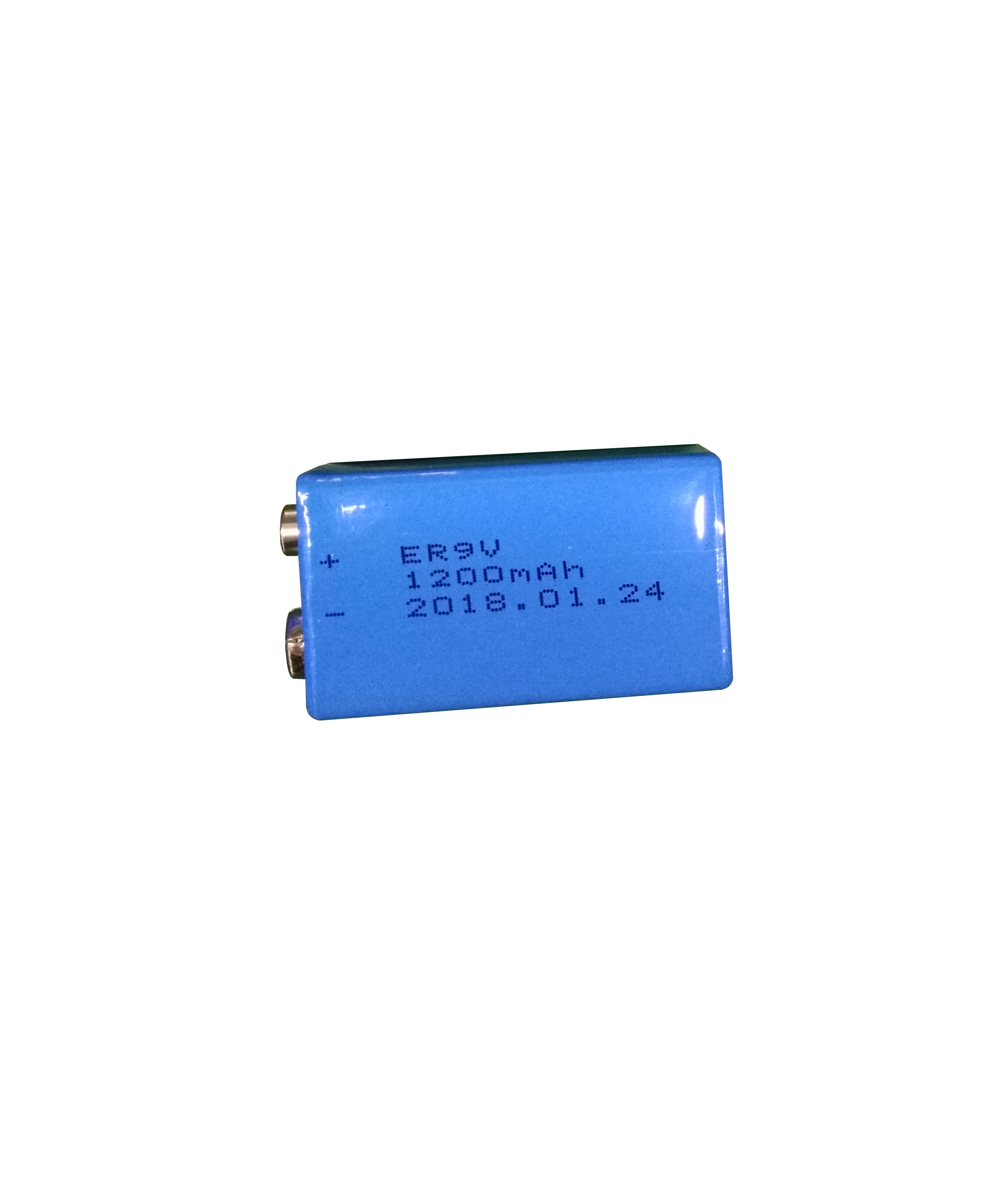

9V Lithium Batteries

Model No:ER9V
IEC Size: 9V
Current(mAh\mA): 1200mAh
Max constant current(mA):25mA
Operate Temp.(℃):-55
End voltage(V):6.0V
Product features


1, High and stable operating voltage;
2, Long shelf life(Self-discharge rate less than 1% at 25℃);
3, Long operating life;
4, Wide temperature range;
5, Stainless steel container and end caps;
6, Hermetic glass-to-metal sealing;
7, Non-flammable electrolyte;
8, Compliant with IEC86-4 safety standard;
9, Non-restricted for transport;
10, High energy density(700kw/kg).
1,  Size:3ER14250;
2,  Dimension:  Φ49.1mm*26.8mm*17.4mm;
3,  Weight: 31g;
4,  Capacity: 1200mAh;
    (at 1mA,+25℃,2.0V cut  off)
5,  Open circuit voltage: 11V
6,  Max continuous current: 25mA
  (at 25℃ 2.0V cut  off, up to 50% of nominal capacity)
7,  Max pulse current: 100mA;
      (100mA/0.1s pulse, drained every 2 minutes at 25℃ from 1mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells’s previous history.)
8,   Operating temperature: -55℃ ~ +85℃;
1,  Utility metering;
2,  Alarm and security devices;
3,  Memory back-up power;
4,  Professional electronics;
5,  Automotive electronics;
6,  Real-time clock;
7,   Tracking system.

Storange condition: clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Warning: Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
Technical parameter
Model Norminal Capacity Norminal Voltage Cell Demensions(mm) Internal
mAh v Thickness Width Length
HJL-CP 1200 9.0 49.5 27.3 18.0 _ 29
HJL-EP 1200 9.0 49.5 27.3 18.0 _ 31
